GORDON

Back to The Amerton Railway Locomotives Page

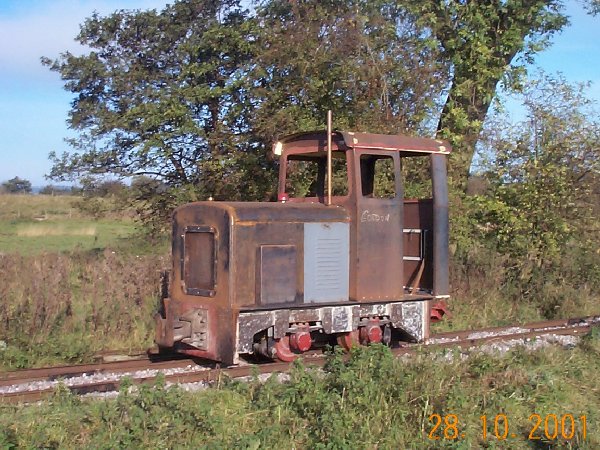

Gordon under construction
Press to enlarge image

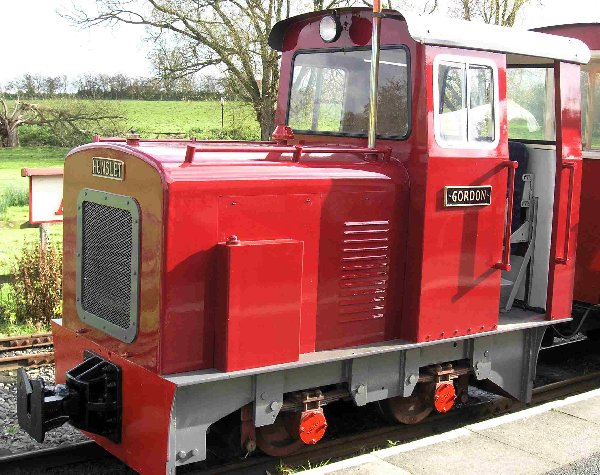

Gordon complete, March 2005
Press to enlarge image

Gordon

Technical Details

Builder Hunslet Engine Co.,
Leeds
No. 8561 Weight 4 tons
Year 1978
Tractive effort 28 hp

This flameproofed underground loco arrived at Amerton on 29th January 1996 having been purchased from a scrap-yard in Fife. The loco is typical of an NCB loco and has hydraulic drive to the two axles, fully air-braked and fitted with a variety of hydraulic and pneumatic safety devices.

Previously working at Allerton Bywater and Castlebridge Collieries, the loco is fitted with a Perkins 3.152 engine and is generally of very sound construction. The loco has now been re-gauged to 2 feet and has undergone an extensive re-build, the Perkins engine being virtually new. The gearbox and torque converter have been fully overhauled with modifications to obtain a slightly higher top speed.

A new cab and body work was designed by John Strike based on the contemporary "Wagonmaster" locos, and the parts were fabricated and assembled at Amerton, making a modern comfortable and very capable machine. It will become our main passenger diesel.
